Λεπτομέρειες:
|
| Χάλυβας άνθρακα: | A105 | Ανοξείδωτο: | ASTM A182 F304 ASTM A182 F304L ASTM A182 F316 ASTM A182 F316L |
|---|---|---|---|
| Χρώμα: | Μαύρο ή κίτρινο ή αντιοξειδωτικό πετρέλαιο | Πίεση: | Κατηγορία Ψ, κατηγορία Δ, δαχτυλίδια AWWA C207 και τυφλός |
| COem: | Εντάξει | ODM: | Διαθέσιμος |
| Υψηλό φως: | η ολίσθηση στη φλάντζα ISO9001,Τυφλή φλάντζα πλημνών AWWA C207-07,PED 2000 ολίσθηση στις φλάντζες σωλήνων |
||

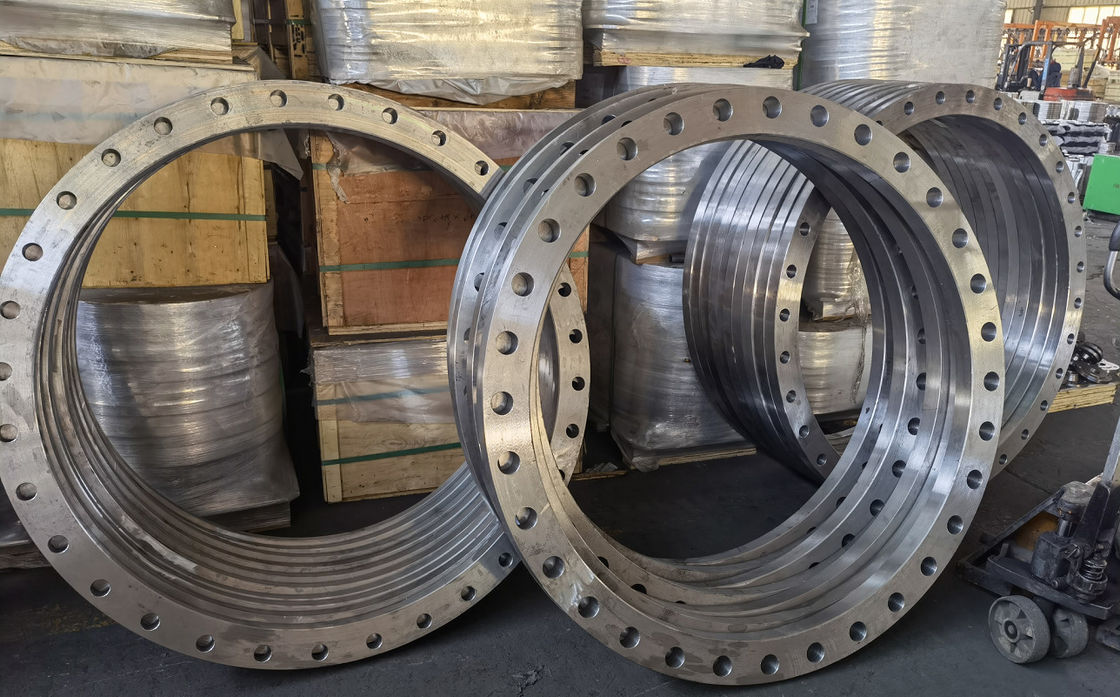

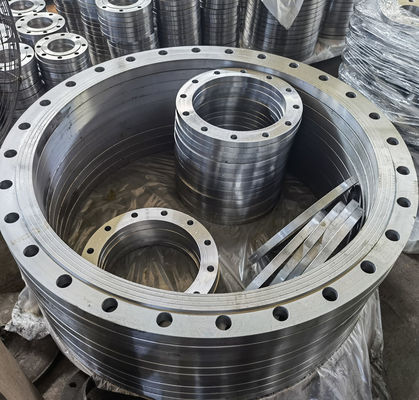

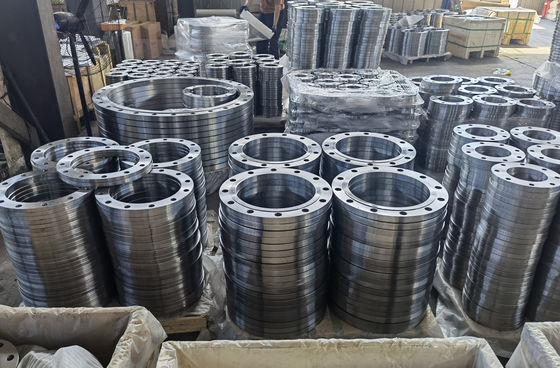

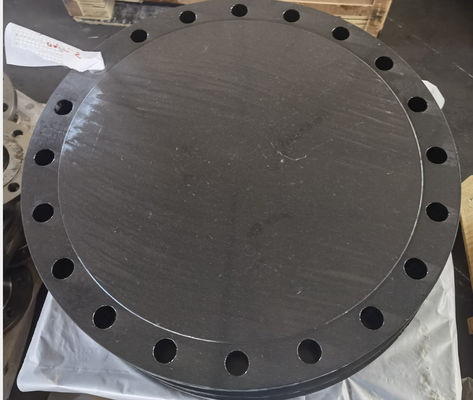

Τύπος δαχτυλιδιών AWWA C207-07, κατηγορία Ψ, ολίσθηση-επάνω & τυφλές φλάντζες σωλήνων χάλυβα
86 PSI
| Nom. μέγεθος |
Έξω Ø (OD) |
Ολίσθηση- Άντεξε (Ταυτότητα) |
Αριθ. Μπουλόνι Τρύπες |
Ø Τρύπες |
Ø Μπουλόνι Κύκλος (Επειδή) |
Πάχος (τ) |
Βάρος (λίβρες) |
||
| Ολίσθηση- | Τυφλός | Ολίσθηση- | Τυφλός | ||||||
| 4 | 9.00 | 4.57 | 8 | 0,750 | 7.50 | 0,938 | 1,312 | 5,312 | 13 |
| 5 | 10.00 | 5.66 | 8 | 0,875 | 8.50 | 0,938 | 1,438 | 6,438 | - |
| 6 | 11.00 | 6.72 | 8 | 0,875 | 9.50 | 1,000 | 1,562 | 7,562 | 19 |
| 8 | 13.50 | 8.72 | 8 | 0,875 | 11.75 | 1,125 | 1,750 | 9,688 | 30 |
| 10 | 16.00 | 10.88 | 12 | 1,000 | 14.25 | 1,188 | 1,938 | 12,000 | 43 |
| 12 | 19.00 | 12.88 | 12 | 1,000 | 17.00 | 1,250 | 2,188 | 14,375 | 64 |
| 14 | 21.00 | 14.19 | 12 | 1,125 | 18.75 | 1,375 | 2,250 | 15,750 | 85 |
| 16 | 23.50 | 16.19 | 16 | 1,125 | 21.25 | 1,438 | 2,500 | 18,000 | 93 |
| 18 | 25.00 | 18.19 | 16 | 1,250 | 22.75 | 1,562 | 2,688 | 19,875 | 120 |
| 20 | 27.50 | 20.19 | 20 | 1,250 | 25.00 | 1,688 | 2,875 | 22,000 | 155 |
| 22 | 29.50 | 22.19 | 20 | 1,375 | 27.25 | 1,812 | 3,125 | 24,250 | - |
| 24 | 32.00 | 24.19 | 20 | 1,375 | 29.50 | 1,875 | 3,250 | 26,125 | 210 |
| 26 | 34.25 | 26.19 | 24 | 1,375 | 31.75 | 2,000 | 3,375 | 28,500 | - |
| 28 | 36.50 | 28.19 | 28 | 1,375 | 34.00 | 2,062 | 3,438 | 30,750 | - |
| 30 | 38.75 | 30.19 | 28 | 1,375 | 36.00 | 2,125 | 3,500 | 32,750 | 305 |
| 32 | 41.75 | 32.19 | 28 | 1,625 | 38.50 | 2,250 | 3,625 | 35,000 | - |
| 36 | 46.00 | 36.19 | 32 | 1,625 | 42.75 | 2,375 | 3,750 | 39,250 | 450 |
| 38 | 48.75 | 38.19 | 32 | 1,625 | 45.25 | 2,375 | 3,750 | 41,750 | - |
| 40 | 50.75 | 40.19 | 36 | 1,625 | 47.25 | 2,500 | 3,875 | 43,750 | - |
| 42 | 53.00 | 42.19 | 36 | 1,625 | 49.50 | 2,625 | 4,000 | 46,000 | 605 |
| 44 | 55.25 | 44.19 | 40 | 1,625 | 51.75 | 2,625 | 4,000 | 48,000 | - |
| 48 | 59.50 | 48.19 | 44 | 1,625 | 56.00 | 2,750 | 4,125 | 52,250 | 800 |
| 54 | 66.25 | 54.19 | 44 | 1,875 | 62.75 | 3,000 | 4,375 | 58,750 | 1025 |
| 60 | 73.00 | 60.19 | 52 | 1,875 | 69.25 | 3,125 | 4,500 | 65,250 | 1250 |
| 66 | 80.00 | 66.19 | 52 | 1,875 | 76.00 | 3,375 | 4,875 | 71,500 | - |
| 72 | 86.50 | 72.19 | 60 | 1,875 | 82.50 | 3,500 | 5,000 | 78,500 | 1925 |
| 78 | 93.00 | 78.19 | 64 | 2,125 | 89.00 | 3,875 | 5,375 | 84,500 | - |
| 84 | 99.75 | 84.19 | 64 | 2,125 | 95.50 | 3,875 | 5,375 | 90,500 | 2600 |
| 90 | 106.50 | 90.19 | 68 | 2,438 | 102.00 | 4,250 | 5,750 | 96,750 | - |
| 96 | 113.25 | 96.19 | 68 | 2,438 | 108.50 | 4,250 | 5,750 | 102,750 | 3275 |
Τύπος δαχτυλιδιών AWWA C207-07, κατηγορία Δ, ολίσθηση-επάνω & τυφλές φλάντζες σωλήνων χάλυβα
150 - 175 PSI
| Nom. μέγεθος |
Έξω Ø (OD) |
Ολίσθηση- Άντεξε (Ταυτότητα) |
Αριθ. Μπουλόνι Τρύπες |
Ø Τρύπες |
Ø Μπουλόνι Κύκλος (Επειδή) |
Πάχος (τ) |
Βάρος (λίβρες) |
||
| Ολίσθηση- | Τυφλός | Ολίσθηση- | Τυφλός | ||||||
| 2 | 6.00 | 2.44 | 4 | 0,750 | 4.75 | 0,625 | 0,625 | 3.90 | 4.7 |
| 2.5 | 7.00 | 2.94 | 4 | 0,750 | 5.50 | 0,625 | 0,625 | 5.30 | 6.5 |
| 3 | 7.50 | 3.57 | 4 | 0,750 | 6.00 | 0,625 | 0,625 | 5.70 | 7.5 |
| 4 | 9.00 | 4.57 | 8 | 0,750 | 7.50 | 0,625 | 0,625 | 7.70 | 10.6 |
| 5 | 10.00 | 5.66 | 8 | 0,875 | 8.50 | 0,625 | 0,650 | 8.80 | 13.6 |
| 6 | 11.00 | 6.72 | 8 | 0,875 | 9.50 | 0,688 | 0,693 | 10.70 | 17.7 |
| 8 | 13.50 | 8.72 | 8 | 0,875 | 11.75 | 0,688 | 0,812 | 15.30 | 31.8 |
| 10 | 16.00 | 10.88 | 12 | 1,000 | 14.25 | 0,688 | 0,953 | 19.20 | 51.7 |
| 12 | 19.00 | 12.88 | 12 | 1,000 | 17.00 | 0,812 | 1,117 | 33.10 | 86.7 |
| 14 | 21.00 | 14.19 | 12 | 1,125 | 18.75 | 0,938 | 1,133 | 46.90 | 107.4 |
| 16 | 23.50 | 16.19 | 16 | 1,125 | 21.25 | 1,000 | 1,265 | 60.10 | 149.8 |
| 18 | 25.00 | 18.19 | 16 | 1,250 | 22.75 | 1,062 | 1,331 | 63.60 | 177.7 |
| 20 | 27.50 | 20.19 | 20 | 1,250 | 25.00 | 1,125 | 1,448 | 79.40 | 233.6 |
| 22 | 29.50 | 22.19 | 20 | 1,375 | 27.25 | 1,188 | 1,568 | 89.90 | 290.5 |
| 24 | 32.00 | 24.19 | 20 | 1,375 | 29.50 | 1,250 | 1,661 | 113.40 | 364.5 |
| 26 | 34.25 | 26.25 | 24 | 1,375 | 31.75 | 1,312 | 1,786 | 128.00 | 448.2 |
| 28 | 36.50 | 28.25 | 28 | 1,375 | 34.00 | 1,312 | 1,906 | 140.50 | 542.6 |
| 30 | 38.75 | 30.25 | 28 | 1,375 | 36.00 | 1,375 | 2,008 | 163.30 | 647.3 |
| 32 | 41.75 | 32.25 | 28 | 1,625 | 38.50 | 1,500 | 2,150 | 210.10 | 798.6 |
| 34 | 43.75 | 34.25 | 32 | 1,625 | 40.50 | 1,500 | 2,252 | 219.10 | 916.9 |
| 36 | 46.00 | 36.25 | 32 | 1,625 | 42.75 | 1,625 | 2,370 | 259.40 | 1071.4 |
| 38 | 48.75 | 38.25 | 32 | 1,625 | 45.25 | 1,625 | 2,506 | 299.80 | 1278.2 |
| 40 | 50.75 | 40.25 | 36 | 1,625 | 47.25 | 1,625 | 2,609 | 311.10 | 1440.1 |
| 42 | 53.00 | 42.25 | 36 | 1,625 | 49.50 | 1,750 | 2,729 | 361.70 | 1648.1 |
| 44 | 55.25 | 44.25 | 40 | 1,625 | 51.75 | 1,750 | 2,849 | 385.00 | 1868.3 |
| 48 | 59.50 | 48.25 | 44 | 1,625 | 56.00 | 1,875 | 3,072 | 457.30 | 2340.7 |
| 54 | 66.25 | 54.25 | 44 | 1,875 | 62.75 | 2,125 | 3,435 | 610.60 | 3236.7 |
| 60 | 73.00 | 60.25 | 52 | 1,875 | 69.25 | 2,250 | 3,779 | 759.10 | 4327.6 |
| 66 | 80.00 | 66.25 | 52 | 1,875 | 76.00 | 2,500 | 4,136 | 1017.00 | 5722.2 |
| 72 | 86.50 | 72.25 | 60 | 1,875 | 82.50 | 2,625 | 4,480 | 1198.20 | 7249.0 |
| 78 | 93.00 | 78.25 | 64 | 2,125 | 89.00 | 2,750 | - | 1368.90 | - |
| 84 | 99.75 | 84.25 | 64 | 2,125 | 95.50 | 2,875 | - | 1639.70 | - |
| 90 | 106.50 | 90.25 | 68 | 2,438 | 102.00 | 3,000 | - | 1878.30 | - |
| 96 | 113.25 | 96.25 | 68 | 2,438 | 108.50 | 3,250 | - | 2298.30 | - |
| 102 | 120.00 | 102.25 | 72 | 2,688 | 114.50 | 3,250 | - | 2494.20 | - |
| 108 | 126.75 | 108.25 | 72 | 2,688 | 120.75 | 3,375 | - | 2892.50 | - |
| 120 | 140.25 | 120.25 | 76 | 2,938 | 132.75 | 3,500 | - | 3568.50 | - |
| 132 | 153.75 | 132.25 | 80 | 3,188 | 145.75 | 3,875 | - | 4628.60 | - |
| 144 | 167.25 | 144.25 | 84 | 3,438 | 158.25 | 4,125 | - | 5698.20 | - |
